• EZDim® combines an LED dimmer switch and low-voltage LED power supply into a single integrated unit. The EZDim®  Dimmer + Driver accepts 120 VAC and converts it to low-voltage DC, all within a standard electrical box. With power options up to 100W, it is a true evolutionary step forward for power and control of LED applications.

  The integrated LED driver that converts 120 VAC to either 12 VDC or 24 VDC. That means this is all you need between your line voltage and low voltage lighting. Best of all, it all fits in a single gang box.

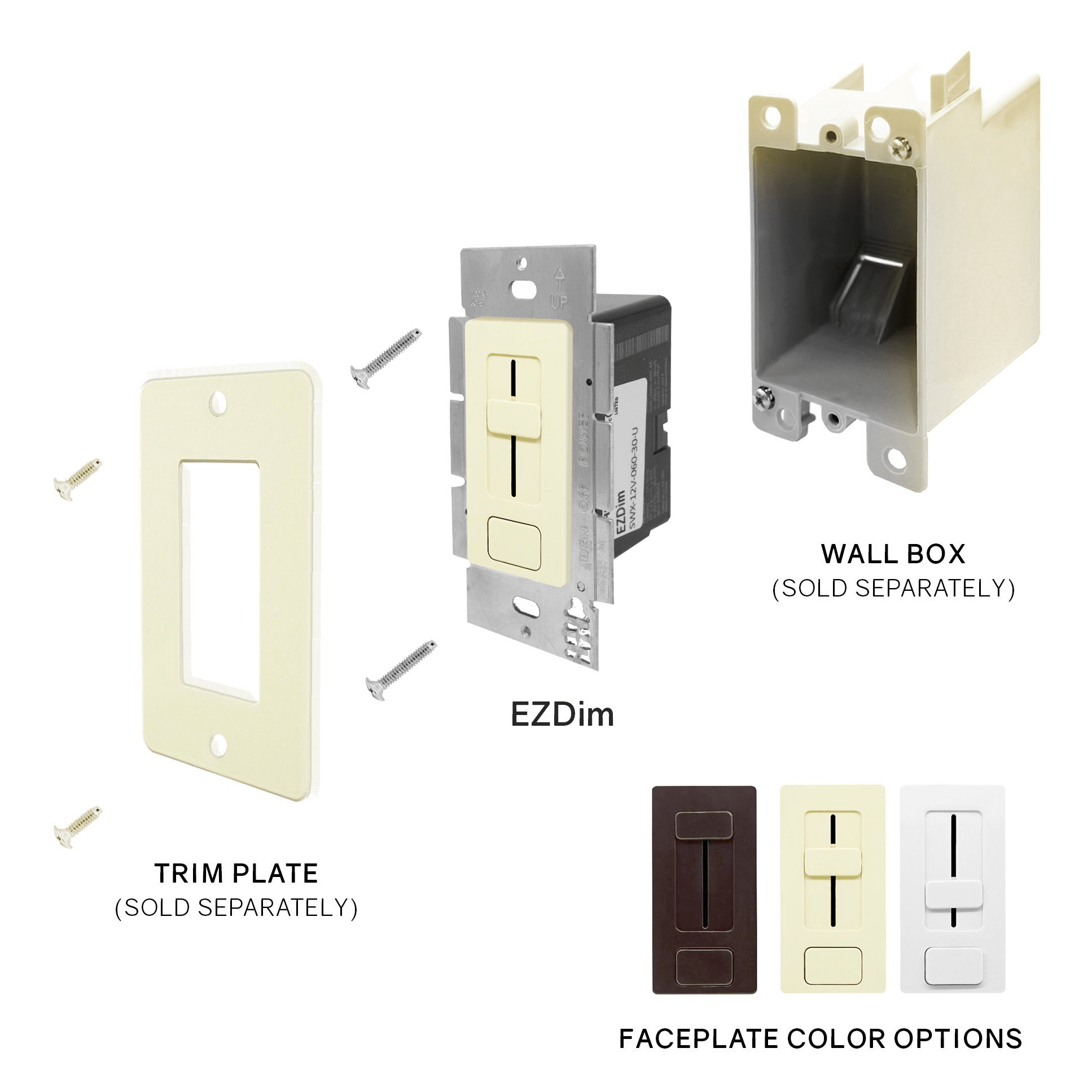

  With four different EZDim®  models, three interchangeable faceplate colors are included in each EZDim®  box allowing customers to choose the look that matches their installation decor. Included faceplates are; glossy white, glossy light almond and glossy brown (trim plate not included).

• Specifications :

  • Input: 120V AC
  • Output: 24V DC, 100 Watts (4.1 Amps)
  • Dimensions: 1.4 x 2.1 x 4.1 Inches
  • Certifications: FCC, UL-Listed

• Data Sheet:
• Download 24 Volt EZDim Driver and Dimmer Switch – 100 Watt Spec Sheet
