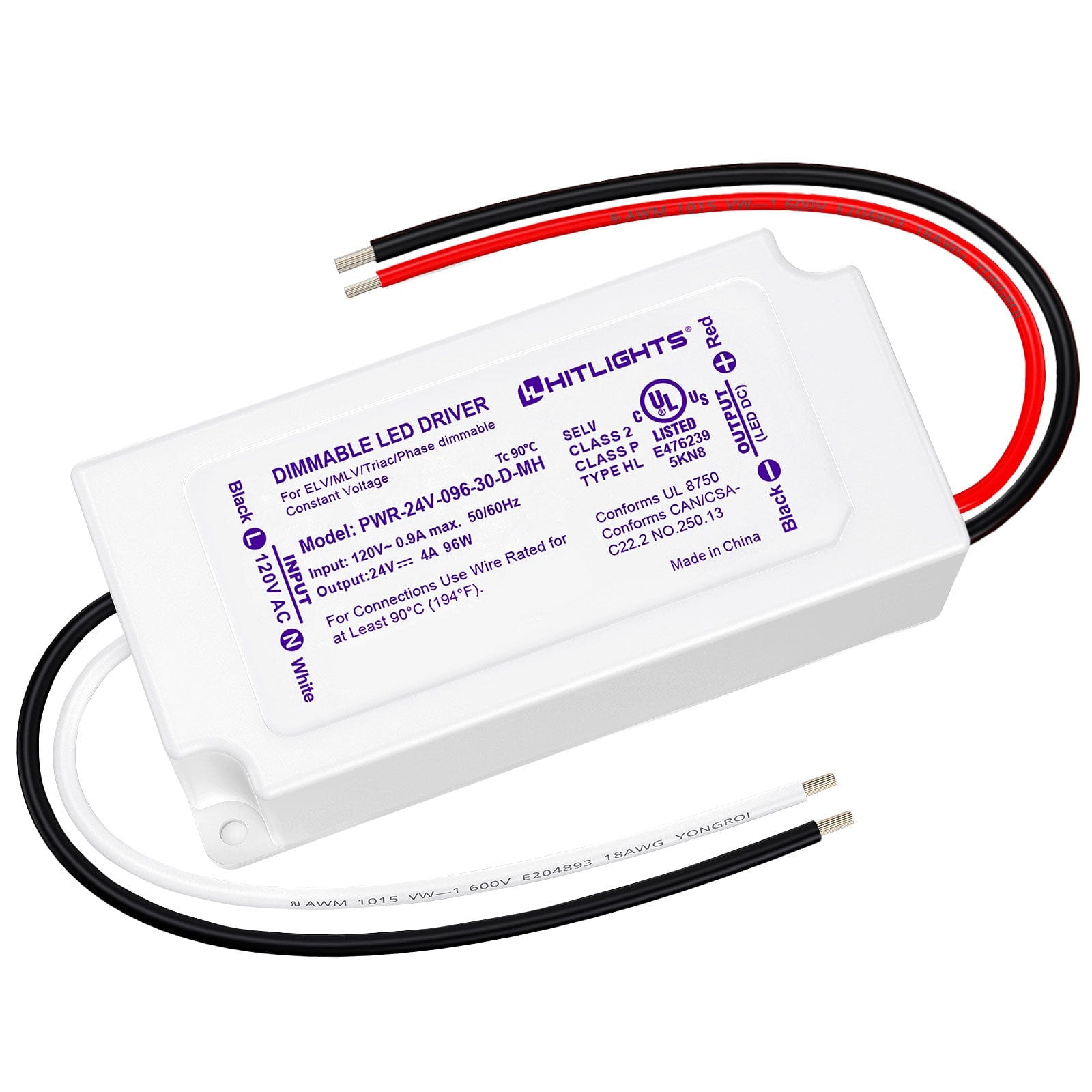

This dimmable driver is the smallest available in its wattage range. Its compact design allows for easy integration into limited spaces. With built-in short circuit and overload protection mechanisms, this ensures that the driver operates reliably and safeguards against potential hazards.

Features:

• Compact design for easy integration to limited spaces
• Class 2, RoHS certified, and UL listed

Application:
The dimmable driver offers exceptional flexibility in terms of installation. Its compact size and adaptability allow for easy installation in both tight and spacious environments. Whether it’s a confined area or a larger space, this driver can be conveniently integrated into various lighting setups.

Installation:

• Driver input : Black (Live), White (Neutral)
• Driver output : Red (Positive), Black (Negative)

Specifications:
Dimming range: 0-100%
Input voltage: 120V AC, 1.2A, 47-63Hz
Output voltage: 24V DC, 4.0A, 96W
Dimensions: 84x40x25 mm / 3.31×1.57×0.98 inch (L*W*H)
Weight: .17/kg
SKU: PWR-24V-096-30-D-MH

Data Sheet: Download 96 Watt Mini Dimmable Driver – 24V Spec Sheet

Compatibility:

Compatible with Triac Phase, MLV, and ELV Dimmers.

Certifications:

• Class 2, RoHS certified, and UL listed

Warranty:  Backed by Hitlights 6-year warranty for peace of mind. Please contact our US-based customer service team anytime for no-hassle troubleshooting and replacement or for any questions about purchasing or installation.
